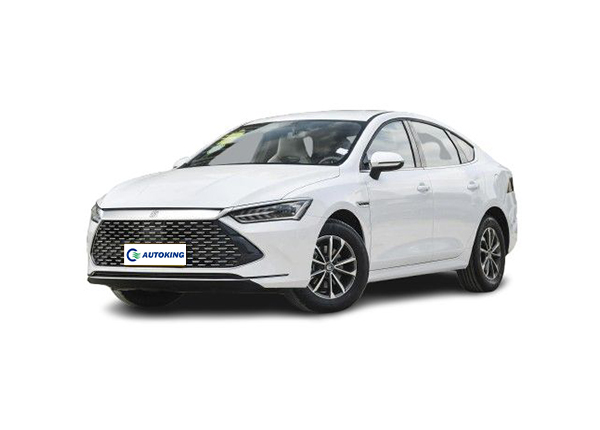

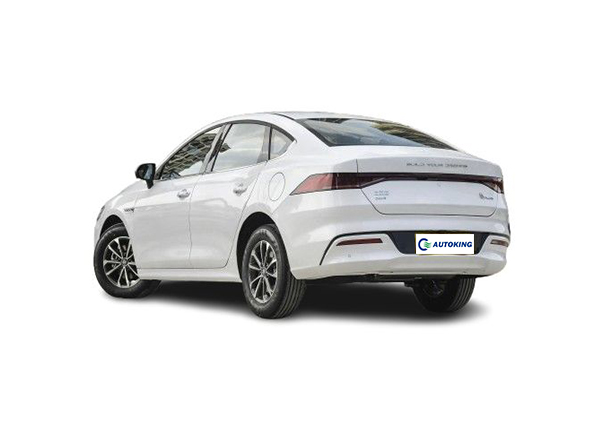

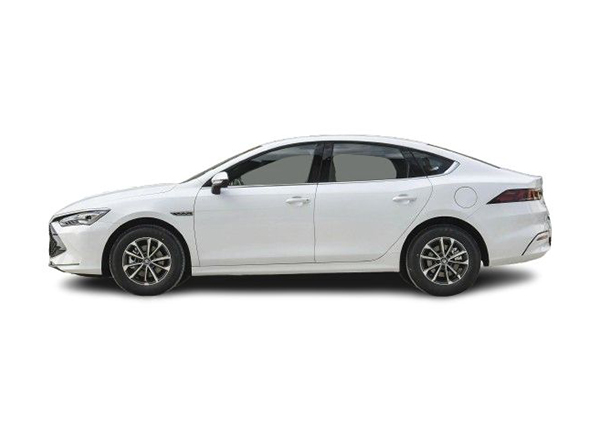

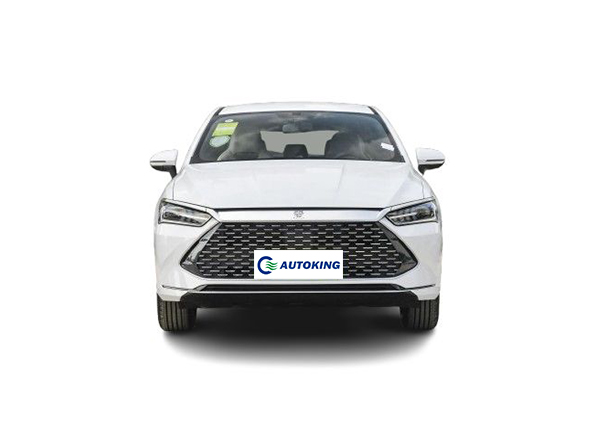

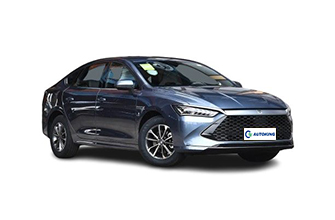

BYD Qin Plus DM-i
BYD Qin Plus DM-i
BYD Qin Plus DM-i
BYD Qin Plus DM-i
BYD Qin Plus DM-i
BYD Qin Plus DM-i
BYD Qin Plus DM-i
BYD Qin Plus DM-i

BYD Qin Plus DM-i

manufacturers BYD
level compact car
energy type plug-in hybrid
Technical Parameters
Online Message
Related Products
Technical Parameters
Basic Data
manufacturers BYD
level compact car
energyjype plug-in hybrid
time to market 2021.03
engine 1.5L 110 horsepower L4 plug-in hybrid
Pure electric cruising range (km) Ministry of Industry and Information Technology 55
Charging time (hours) Slow charging for 2.52 hours
Quick charge capacity (%) -
Engine maximum power (kW) 81(11OPs)
Motor maximum power (kW) 132(18OPs)
Engine maximum torque (N m) 135
Motor maximum torque (N m) 316
gearbox E-CVT continuously variable transmission
Length x width x height .(mm). 4765x1837x1495
Body structure 4 door 5 seat sedan
Maximum speed(km/h) 185
Official 100km acceleration time (s) 7.9
NEDC comprehensive fuel consumption (L/100km) 1.2
Power consumption per 100 kilometers (kWh/100km) 11.7
Electric energy equivalent fuel consumption (L/100km) 1.3
Minimum state of charge fuel consumption (L/100km) 3.8
Vehicle Warranty Period 6 years or 150,000 kilometers
body
length (mm) 4,765
width (mm) 1,837
height (mm) 1,495
Wheelbase (mm) 2,718
Front track(mm) 1,580
Rear track(mm) 1,590
Body structure Sedan
Number of doors (a) 4
Door opening method side hinged door
Number of seats (pieces) 5
curb weight(kg) 1,500
Full load mass(kg) 1,875
Fuel tank capacity (L) 48.0
Luggagu compartment volume (L) 500
engine
engine model BYD472QA
Displacement (mL) 1,498
Displacement (L) 1.5
Intake form inhale naturally
Cylinder arrangement L
Number of cylinders (pieces) 4
Number of valves per cylinder (pieces) 4
compression ratio 15.5
Air Supply DOHC
Maximum horsepower .(PS). 110
Maximum power (kW) 81
Maximum power speed(「pm) 6,000
Maximum torque (N・m) 135
Maximum torque speed(rpm) 4,500
Engine Specific Technology -
fuel form plug-in hybrid
fuel label 92#
Fuel supply method Multi-point EFI
Cylinder head material aluminum
Cylinder material aluminum
Environmental standards Country VI
electric motor
Motor description Plug-in hybrid 180 horsepower
motor type Permanent magnet/synchronous
Total motor power (kW) 132
Motor total horsepower .(PS). 180
Motor total torque (N m) 316
Maximum power of the front motor (kW) 132
Front motor maximum torque (N m) 316
Number of drive motors single motor
Motor layout Front
Charging batteries
Battery Type Lithium iron phosphate battery
Battery Featured Technology blade battery
Battery brand BYD
Battery Pack Warranty Unlimited years/unlimited mileage for the first owner (the liability exemption clause is subject to the official standard)
Battery capacity (kWh) 8.32
Battery energy density .(Wh/kg). -
Charging batteries Slow charging for 2.52 hours
Fast charging interface location -
Slow charging interface location right fuel tank
Battery Temperature Management System -
one pedal mode -
VTOL mobile power station function -
Charging pile -
gearbox
Gearbox description E-CVT continuously variable transmission
Gears CVT
gearbox type Electronic Continuously Variable Transmission (E-CVT)
Chassis/Steering
drive mode front drive
Front suspension McPherson independent suspension
rear suspension Trailing arm torsion beam non-independent suspension
steering type electric assist
Body structure load-bearing
Wheels/brakes
Front Brake Type Ventilated Disc
rear brake type solid disc
Parking Brake Type electronic parking
Front tire size 215/55 R17
Rear tire size 215/55 R17
Spare tire specifications -
active safety
ABS anti-lock brake • standard
Braking force distribution • standard
(EBD/CBC. etc.)
Brake Assist (EBA/BA etc.) • standard
Traction Control (TCS/ASR etc). • standard
Body stabilization system (ESP/DSC, etc.) • standard
Active Safety Warning System -
active braking -
Parallel Assist -
Lane Keeping Assist
lane centering -
Fatigue Driving Tips -
Active DMS Fatigue Detection -
In-vehicle vital sign detection -
Road Traffic Sign Recognition -
Signal light recognition -
night vision system -
passive safety
front airbag • driver's seat
  • co-pilot
side airbag • front row
side curtain airbags • standard
front knee airbag -
central airbag -
Seat belt not fastened reminder • standard
tire pressure monitoring system • tire pressure display
Child seat interface (ISOFIX) • standard
passive pedestrian protection -
safety tire -
Assist/Control Configuration
parking radar • rear
Reminder of the vehicle ahead -
Driving Assistance Video • Reverse image     icon
cruise system • cruise control       icon
Automatic Lane Change Assist -
Ramp automatic exit (entry) -
Assisted driving level -
automatic parking -
Tracking and reversing -
memory parking -
Automatic parking (AUTOHOLD) • standard
Hill Assist (HAC) • standard
Hill descent (HDC) -
Engine Start-Stop Technology -
Variable Suspension Adjustment -
air suspension -
Electromagnetic induction
suspension
Variable Steering Ratio System -
Front axle limited slip mode -
Rear axle limited slip mode -
Center differential lock function -
Integral Active Steering -
  • sports
driving mode selection • ECO
  • standard comfort
Brake Energy Recovery • standard
System
Low-speed driving warning sound • standard
external configuration
sMghUype • single sunroof
light-sensitive canopy -
roof rack -
sporty appearance kit -
electric spoiler -
Active closed air intake grille -
Aluminum alloy wheels • standard
Frameless design doors -
hidden door handle -
tow hook -
internal configuration
steering wheel material • leather
steering wheel adjustment up and down + front • and back
Electric steering wheel adjustment -
steering wheel function • multifunction control
trip computer screen • color
LCD instrument style • Full LCD
LCD Meter Dimensions            • unknown (inches)
Comfort/Anti-Theft Configuration
Electric suction door -
electric tailgate -
Inductive tailgate -
Electric tailgate position memory -
Engine electronic anti-theft • standard
Central locking in the car • standard
  • smart remote key
Key fob type mobile phone • bluetooth key
  • NFC/RFID key
  。wearable key
keyless entry • front row           icon
keyless start • standard           icon
remote start • standard
remote control vehicle • standard
vehicle call function -
Head-Up Display (HUD) -
Built-in driving recorder -
Active Noise Cancellation -
mobile phone wireless charging • standard           icon
Mobile phone wireless charging maximum power (W) 15
110V/220V/230V power socket -
Lug gage compartment 12V power interface -
seat configuration
seat material • imitation leather
sporty seat • standard
Second row individual seats -
Electric Seat Adjustment • driver's seat
  • move back and forth
Overall adjustment of the driver's seat • backrest angle
  • height adjustment
Partial adjustment of the driver's seat -
Overall adjustment of • move back and forth
passenger seat • backrest angle
Partial adjustment of passenger seat -
Overall adjustment of the second row of seats -
Second row seat partial adjustment -
front seat function -
Second row seat functions -
boss key -
front/rear armrest • front row
• back row
rear cup holder • standard
Heated/cooled cup holder -
Rear seat down ratio • 40:60
Second row of small table boards -
Smart Internet
Central control screen size (inches) • 10.1
Touch screen vibration feedback -
screen layout Traditional dual-screen . layout
GPS navigation system • standard
AR real-world navigation -
Navigation traffic information display • standard
roads旭e assistance service -
Bluetooth/Car Phone • standard
Mobile Internet Mapping -
Internet of Vehicles • standard
4G/5G network • 4G
OTA upgrade • standard
face recognition -
Fingerprint recognition -
voiceprint recognition -
emotion recognition -
Voice recognition control system • standard
Voice free wake-up function -
Voice sub-area wake-up recognition function • main driver
Continuous Speech Recognition -
see can say -
voice assistant wake word hello di
gesture control -
Wi-Fi hotspot • standard
Media entertainment
Multi-finger flying screen control -
app Store • standard
multimedia interface • USB/Type-C
Number of USB/Type-C • 2 front row
ports • 2 back row
USB/7ype-C maximum Front row 10W
charging power Rear row 10W
Car TV -
rear LCD screen -
simulated sound waves -
Karaoke function • standard
audio brand -
Number of speakers (units) • 6
rear multimedia controls -
lighting configuration
Low beam lights • led
High beam • led
daytime running lights • standard
Adaptive far and near light -
automatic headlights • standard
turn signal lamp -
Front fog lights -
Penetrating headlights -
through tail lights • standard
Headlight Adaptive Steering (AFS) -
headlight height adjustment • standard
headlight cleaning function -
interior ambient light -
Active Ambient Mood Lighting -
Lighting Features -
Delayed headlight off • standard
Headlight rain and fog mode -
glass/mirror
electric windows • front row
• back row
One-button window lift • whole car
Window anti-pinch function • standard
  electric •                         icon adjustment
Exterior mirror function • heating
. electric folding
  Automatic folding when • locking the car
Interior rearview mirror function -
vanity mirror Main driving position + • no lighting
Copilot seat + no , lighting
rear privacy glass -
interior sunshade -
Rain Sensing Wipers -
rear wiper -
Multi-layer soundproof glass -
Front windshield electric heating -
heated water nozzle -
air conditioner/refrigerator
Air Conditioning Control Mode • automatic
Rear independent air conditioner -
rear air outlet • standard
Temperature zone control Dual Zone Air • Conditioning
Car air purifier -
In-car PM2.5 filter • standard
HEPA filter -
negative ion generator -
car fragrance device -
car refrigerator -
Intelligent configuration
Vehicle Intelligent System DiLink intelligent • network connection
In-vehicle system memory (GB) • 6
ln-vehide system storage (GB) • 64
  . digital key
  • vehicle monitoring
Mobile App remote control • remote control • charge management
  • service appointment
heat pump management system -
Number of cameras outside the car (units) • 1
Ultrasonic radar quantity (unit) • 4
Sub-meter high-precision positioning system -
HD map -
Sentry (clairvoyance) mode -
V2X communication -
optional package
Customized options Optional exterior; interior; wheels, brakes
Featured configuration
Adaptive Rotation Suspended Pad • standard
Message
What Do Customers Say
There are many variations of passages of lorem ipsum available but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.
Mike hardson
Manager
There are many variations of passages of lorem ipsum available but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.
Mike hardson
Manager
There are many variations of passages of lorem ipsum available but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.
Mike hardson
Manager
There are many variations of passages of lorem ipsum available but the majority have suffered alteration in some form, by injected humour, or randomised words which don't look even slightly believable.
Mike hardson
Manager
Related Products
